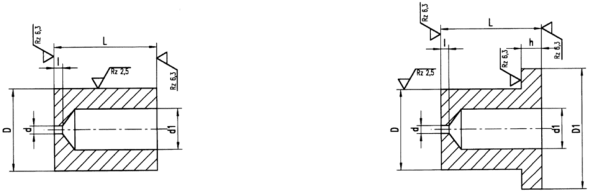

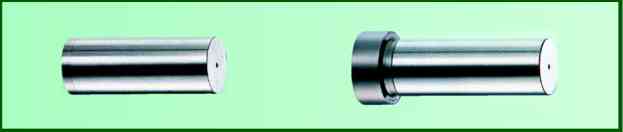

similar to ISO 8977 type A – haedless · type B – with head
|
Item no.: |
5283 . . . type A | Material: | HSS = High speed steel |
| 5293 . . . type B | |||
| Version: | Type A: with cylindrical exterior diameter, | Hardness: | HRC 64 ± 2 |
| hardened, tempered and ground finished. | |||
|
|
Type B: with head, hardened, tempered and | How to order: | For die with starter hole |
|
ground finished. |
Type A | ||
| External diameter D = 8 mm | |||
| Total length L = 20 mm | |||
| Die with starter hole | |||
| Similar ISO 8977 A 8 × 20 | |||
| Item no. 5283.08.20 |
| d | D | D1 | d1 | L | l | h | |||
| Type A: n5 | 0 | Max | + 0,5 | + 0,25 | |||||
| Type B: m5 | - 0,25 | 0 | 0 | ||||||
| 1,0 | 8 | 11 | 4 | 16 | 20 | 25 | 32 | 4 | 5 |
| 1,0 | 10 | 13 | 5,8 | 4 | |||||
| 1,2 | 13 | 16 | 8 | - | 5 | ||||
| 1,2 | 16 | 19 | 9,5 | 5 | |||||
| 1,5 | 20 | 24 | 12 | 8 | |||||
| 1,5 | 25 | 29 | 17,3 | 8 | |||||
| 1,5 | 32 | 36 | 20,7 | 8 | |||||
| 1,5 | 40 | 44 | 27,7 | 8 | |||||
| 1,5 | 50 | 54 | 37 | 8 | |||||
Warning: The diagonal profile should not be larger than max d1 on dies for square and rectangular forming.
